Paper Feeding, Folding Gluing Unit :
1.The main motor adopts frequency conversion speed regulation, the
system is noiseless, and the speed regulation is flexible and
stable.2.Adopting belt suction and paper feeding method, 8 wind boxes can
adjust the air volume arbitrarily, so that the paper
feeding is accurate and reliable.
3. Adopt high-end electromagnetic clutch brake system, so that the
paper feeding part can be controlled separately, and the operation
is simple and convenient.
4.The front baffle and paper feeding belt of the paper feeding
section can be adjusted from left to right, and the front paper
feeding section can be adjusted electrically, which is convenient
and quick to meet the paper feeding requirements of cartons of
various specifications.
5.The eccentric wheel adjusts the gap, which is suitable for
cardboard with multiple specifications and thickness. Suitable for
cardboard thickness 3-8mm.
6.Adopt the gluing method under the knurled wheel, the gluing wheel
can adjust the width of the glue, the glue is uniform, there is no
leakage, and the glue is saved;The gluing speed is synchronized
with the host machine, which reduces the friction between the
rubber wheel and the cardboard and extends the service life of the
rubber wheel.

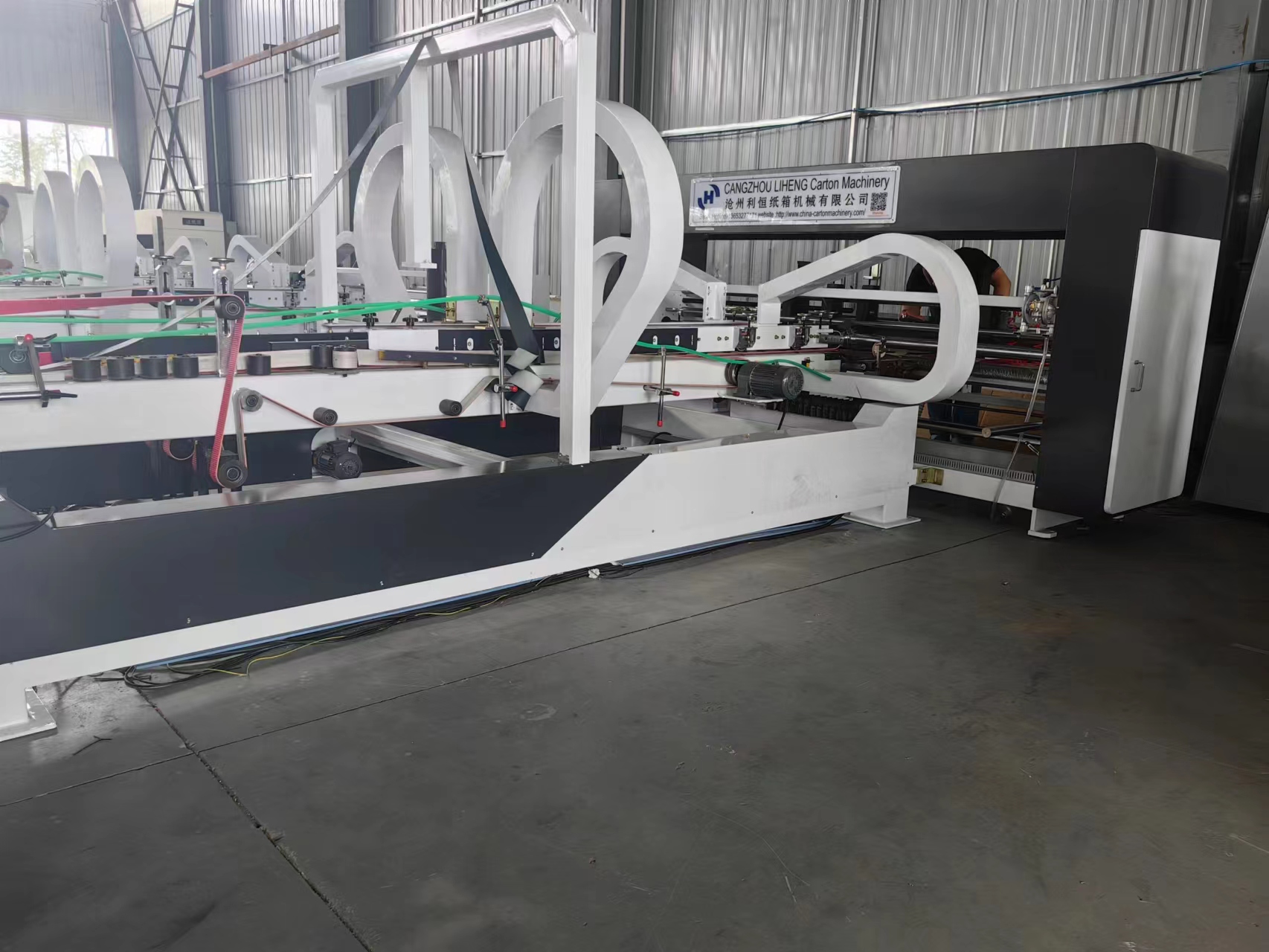

Folding Unit :
1. Linked with paper feeding department, frequency conversion speed
regulation.
2. Imported high-friction belts and timing belts are used to
transport the cardboard, which automatically folds, effectively
avoiding the shearing phenomenon caused by the different thickness
of the cardboard or the different tightness of the belts on both
sides.
3. The folding part is equipped with a cardboard correction device,
an indentation correction device, and a snap correction device,
which can effectively compensate and correct the phenomenon that
the fold line is not in place during the grooving process and avoid
the occurrence of scissors.
4. Adopt the vacuum suction method to feed the paper to ensure that
the cardboard is neatly fed and not skewed.
5.The folding speed is 130m/min.6. The folding beam has a
four-point pneumatic locking mechanism to ensure stable operation
of the folding beam.
Pre-folding Unit :
Using patented technology Mitsubishi servo motor and timing belt to
drive three clappers, to achieve the same paper correction device
for chasing shots, minimize the damage of the cardboard, perform
secondary compensation and correct the phenomenon of not in place,
eliminate the scissors mouth, and make the nail box more perfect.
Main motor Japan Mitsubishi servo motor. The paper conveying belt
adopts the famous domestic brand belt. The servo motor drives the
clapper through the timing belt to realize the alignment of the
carton, making it easier to accurately control the clapper.
Stitching Unit :
1.Using synchronous belt conveyor, PLC control, touch screen
adjustment, (such as: nail box page, glue box page: used for nail
box, glue box exchange: stage display: nail box speed and work
output can be viewed when nailing the box. ) Convenient, fast and
accurate.
2.It has a flapping correction device to compensate and correct the
lack of position of the box piece, effectively reducing the
occurrence of scissors.
3.Adopt swing nail head to effectively improve the quality of nail
box.
4.Adopt standard 17#(2.0*0.7mm) 18#(1.81*0.71mm) nail wire, size
tolerance: +0.02mm, reliable quality 20kg wire reel, reduce the
number of wire changes and improve production efficiency.
5.With order memory function, it can effectively reduce the time of
order change adjustment and improve production efficiency.
6.Nailing speed 1200 nails/minNail angle 45 degreesNail distance
range 30-120mm.
Counting&Delivery Unit :
1.After the glued carton is finished, it will be patted, counted,
stacked again and sent out automatically.
2. With differential correction, the accumulation speed is 130m/min.
3. Pneumatic method is adopted for counting and pushing out, which
is reliable, accurate and fast.
4. Equipped with an emergency stop switch to avoid waste of
cardboard in emergency situations and for safety design.
Electric Control Unit :
1.Use touch screen to input various carton data, complete
specification adjustment and order change, simple operation and
reliable action.
2.It can input data without stopping the machine, automatically
count and output accurately.
3.Total installed capacity： 30KW The electric control system adopts
the latest PLC computer automatic control system of Japan's
Mitsubishi, from gluing, folding, sorting, staple box, paper
delivery, automatic detection and control, and Japan Fuji
contactor. The man-machine interface display system can display
various working conditions, point out where the fault occurred and
propose solutions. Equipped with a variety of safety protection
devices, sound and light alarms when failure occurs, and
automatically shut down to ensure the safety of man and machine.
